Electromechanicals

Switches

Lead Time     15 weeks

Datasheet

    Download DMR-01-T-V-T/R datasheet DMR-01-T-V-T/R

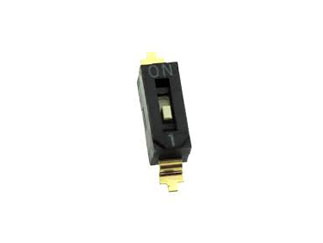

DM Series 1 Position Recessed Actuator Top Tape Sealed Surface Mount Dip Switch

Technical Data

Manufacturer diptronics manufacturing inc
MPN DMR-01-T-V-T/R
Sealing TOP TAPE SEALED
Body Color BLACK
Switch Type SLIDE DIP SWITCH
Actuator Type SLIDE TYPE
Solderability HAND/REFLOW/WAVE
Switch Action LATCHED
Actuator Color WHITE
J-STD-609 Code e4
Packing Method TR
Switch Function SPST
Terminal Finish Gold (Au)
Body Height (mm) 3.0000
Contact Function ON-OFF
Housing Material POLYETHYLENE/POLYPHENYLENE SULFIDE
Mounting Feature SURFACE MOUNT-STRAIGHT
Termination Type SOLDER
Actuator Material POLYAMIDE/POLYETHYLENE
Body Breadth (mm) 3.4800
Terminal Material BRASS
Additional Feature APPROVAL: UL; LOW PROFILE
Insulator Material POLYETHYLENE/POLYPHENYLENE SULFIDE
End Contact Plating GOLD
End Contact Material COPPER ALLOY
Center Contact Plating GOLD
Center Contact Material COPPER ALLOY
Contact Resistance (mohm) 50.0000
Number of Switch Sections 1.0000
Electrical Life (Cycle(s)) 2000.0000
Contact Current(DC)-Max (A) 0.0250
Contact Voltage(DC)-Max (V) 24.0000
Insulation Resistance (ohm) 100000000.0000
Body Length or Diameter (mm) 6.2000
Contact DC Max Rating R Load 0.025A@24VDC
Dielectric Withstand Volts (V) 500VAC
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -20.0000
Width 6.2 mm
Length 3.5 mm
Availability In stock
