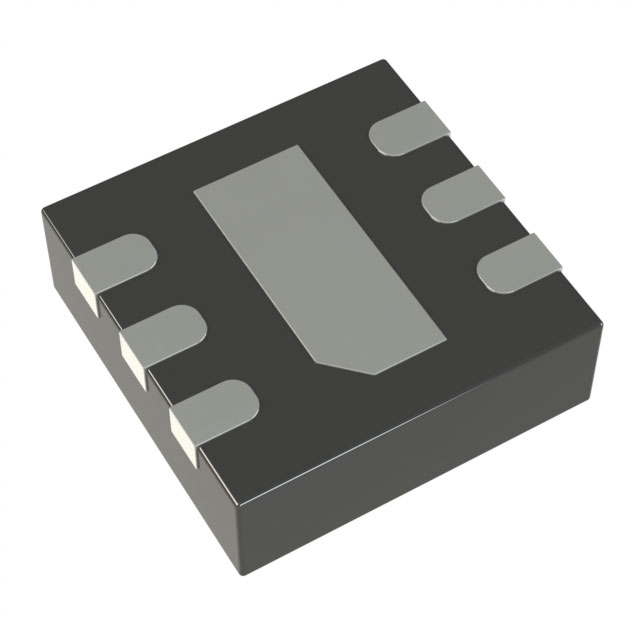

LTC3204BEDC-5#TRMPBF
Availability
Design risk
Price trend
Lead time
Low Noise Regulated Charge Pump in 2 × 2 DFN
| Technology | CMOS |
| Width (mm) | 2 |
| Length (mm) | 2 |
| JESD-30 Code | S-PDSO-N6 |
| Package Code | HVSON |
| Package Shape | SQUARE |
| Package Style (Meter) | SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| J-STD-609 Code | e3 |
| Terminal Finish | Matte Tin (Sn) |
| DLA Qualification | Not Qualified |
| Temperature Grade | COMMERCIAL |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Terminal Pitch (mm) | 0.5 |
| Input Voltage-Max (V) | 5.5 |
| Input Voltage-Min (V) | 2.7 |
| Input Voltage-Nom (V) | 3.6 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHED CAPACITOR REGULATOR |
| Output Current-Max (A) | 0.3 |
| Seated Height-Max (mm) | 0.8 |
| Switcher Configuration | DOUBLER INVERTER |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 1800 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
