TPS546B24ARVFR TEXAS INSTRUMENTS INC

TPS546B24ARVFR TEXAS INSTRUMENTS INC
Availability
Available
TPS546B24ARVFR Availability: In Stock
Design risk
Low
Design risk
Price trend
Decreasing
Price trend
Lead time
Stable
Lead time
15 results found
MP8756GD-Z
MP8756GD-Z Availability: In Stock
Available
Medium
Medium
Decreasing
Decreasing
Decreasing
Decreasing
WR06X104JTL
WR06X104JTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR08X121JTL
WR08X121JTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
EEEFTE221XAP
EEEFTE221XAP Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Increasing
Increasing
SRR1280-1R1Y
SRR1280-1R1Y Availability: In Stock
Available
Low
Low
Stable
Stable
Increasing
Increasing
WR04X1500FTL
WR04X1500FTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
AD7687BRMZRL7
AD7687BRMZRL7 Availability: In Stock
Available
Low
Low
Increasing
Increasing
Stable
Stable
AD7689BCPZRL7
AD7689BCPZRL7 Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable
EPM240T100I5N
EPM240T100I5N Availability: In Stock
Available
High
High
Decreasing
Decreasing
Stable
Stable
0402N470J250CT
0402N470J250CT Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable
0603N100J500CT
0603N100J500CT Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
1206B471J101CT
1206B471J101CT Availability: In Stock
Available
High
High
Stable
Stable
Decreasing
Decreasing
1206N470J102CT
1206N470J102CT Availability: In Stock
Available
High
High
Decreasing
Decreasing
Decreasing
Decreasing
AD8629ARZ-REEL7
AD8629ARZ-REEL7 Availability: Out of Stock
Unavailable
Low
Low
Increasing
Increasing
Stable
Stable
TCC0603X7R474K2...
TCC0603X7R474K250CT Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Other Semiconductors

Lead Time     12 weeks

Datasheet

    Download TPS546B24ARVFR datasheet TPS546B24ARVFR

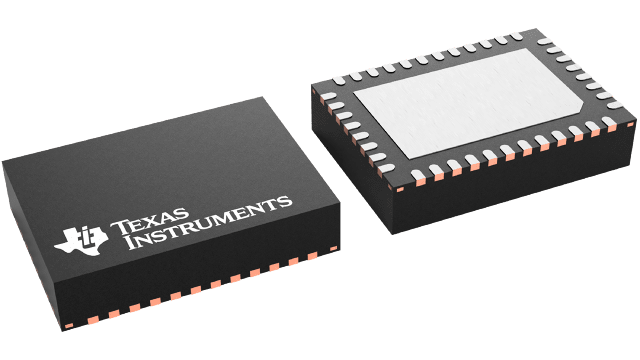

2.95-V to 18-V, stackable 20-A synchronous SWIFT™ buck converter with pin-strapping and PMBus 40-LQFN-CLIP -40 to 150

Technical Data

Manufacturer texas instruments inc
MPN TPS546B24ARVFR
Control Mode CURRENT-MODE
JESD-30 Code R-PQCC-N40
Package Code HQCCN
Package Shape RECTANGULAR
Package Style ( Meter ) CHIP CARRIER, HEAT SINK/SLUG
Surface Mount YES
Terminal Form NO LEAD
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Control Technique PULSE WIDTH MODULATION
Number of Outputs 1.0000
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 40.0000
Input Voltage-Max (V) 18.0000
Input Voltage-Min (V) 2.9500
Input Voltage-Nom (V) 12.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 20.0000
Output Voltage-Max (V) 5.5000
Output Voltage-Min (V) 0.2500
Seated Height-Max (mm) 1.5200
Switcher Configuration BUCK
Supply Current-Max (mA) 17.0000
Moisture Sensitivity Level 2.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 1500.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS546B24ARVFR optimizes energy distribution in electronic devices. Its 2.95-V to 18-V, stackable 20-A synchronous SWIFT™ buck converter with pin-strapping and PMBus 40-LQFN-CLIP -40 to 150 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS546B24ARVFR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS546B24ARVFR in the documentation section.

2.95-V to 18-V, stackable 20-A synchronous SWIFT™ buck converter with pin-strapping and PMBus 40-LQFN-CLIP -40 to 150
