Semiconductors

Programmable Logic ICs

Lead Time     143 weeks
Data Sheet     Download XC3S400-4FGG320I datasheet XC3S400-4FGG320I

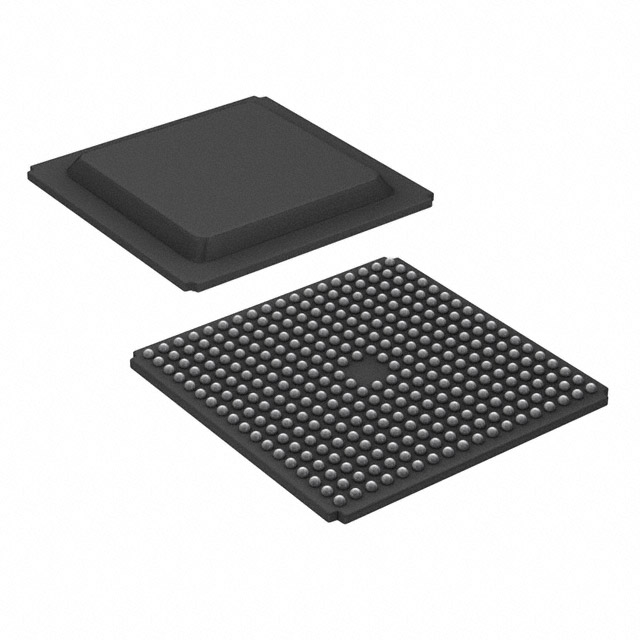

IC FPGA 221 I/O 320FBGA

Technical Data

Manufacturer Advanced Micro Devices, Inc. (AMD)
MPN XC3S400-4FGG320I
Technology CMOS
Width (mm) 19.0000
Length (mm) 19.0000
JESD-30 Code S-PBGA-B320
Organization 896 CLBS, 400000 GATES
Package Code BGA
Package Shape SQUARE
Package Style ( Meter ) GRID ARRAY
Surface Mount YES
Terminal Form BALL
J-STD-609 Code e1
Number of CLBs 896.0000
Terminal Finish TIN SILVER COPPER
Number of Inputs 221.0000
DLA Qualification Not Qualified
Number of Outputs 221.0000
Terminal Position BOTTOM
Number of Terminals 320.0000
Terminal Pitch (mm) 1.0000
Number of Logic Cells 8064.0000
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 2.0000
Supply Voltage-Max (V) 1.2600
Supply Voltage-Min (V) 1.1400
Supply Voltage-Nom (V) 1.2000
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Package Equivalence Code BGA320,18X18,40
Clock Frequency-Max (MHz) 630.0000
Moisture Sensitivity Level 3.0000
Number of Equivalent Gates 400000.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 100.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Combinatorial Delay of a CLB-Max (ns) 0.6100
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Programmable Logic ICs, XC3S400-4FGG320I optimizes energy distribution in electronic devices. Its IC FPGA 221 I/O 320FBGA allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Programmable Logic ICs, XC3S400-4FGG320I ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for XC3S400-4FGG320I in the documentation section.

IC FPGA 221 I/O 320FBGA
