CC0603KRX7R9BB104
Availability
Design risk
Price trend
Lead time

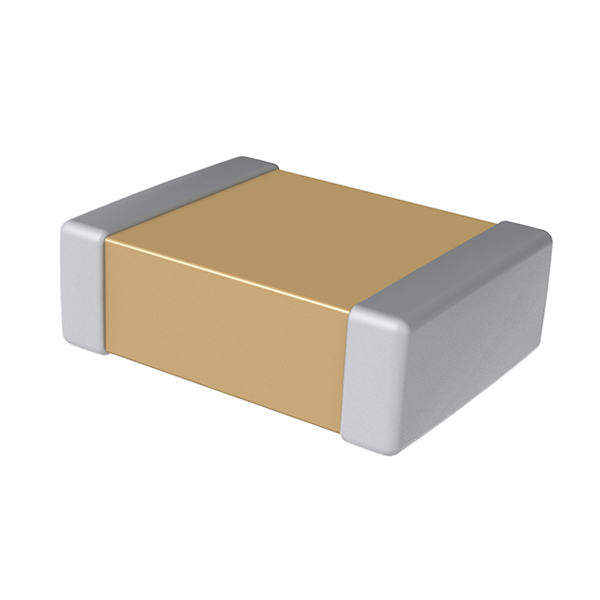

SMD, MLCC, General Purpose
| Size Code | 0603 |
| Multilayer | YES |
| Width (mm) | 0.8 |
| Height (mm) | 0.8 |
| Length (mm) | 1.6 |
| Package Shape | RECTANGULAR PACKAGE |
| Package Style (Meter) | SMT |
| Capacitor Type | CERAMIC CAPACITOR |
| J-STD-609 Code | e3 |
| Packing Method | TR, PAPER, 7 INCH |
| Terminal Shape | WRAPAROUND |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier |
| Capacitance (uF) | 0.1 |
| Mounting Feature | SURFACE MOUNT |
| Dielectric Material | CERAMIC |
| Number of Terminals | 2 |
| Negative Tolerance (%) | 10 |
| Positive Tolerance (%) | 10 |
| Temperature Coefficient (ppm/Cel) | 15% |
| Rated DC Voltage (URdc) (V) | 50 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -55 |
| Temperature Characteristics Code | X7R |
| Length | 1.6 mm |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for YAGEO Corp. CC0603KRX7R9BB104 in the documentation section.
SMD, MLCC, General Purpose
As a typical representative of the subcategory Passives, CC0603KRX7R9BB104 is used to control the level of current and voltage in electrical circuits. Its SMD, MLCC, General Purpose ensures stable resistance, which is critical for precise measurements and component protection.
CC0603KRX7R9BB104 from the category Passives by manufacturer YAGEO Corp. provides precise current limitation in the scheme. Thanks to its SMD, MLCC, General Purpose, it contributes to stable operation of electronic devices, preventing overloads and voltage fluctuations.
