Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TS3USB30EDGSR datasheet TS3USB30EDGSR

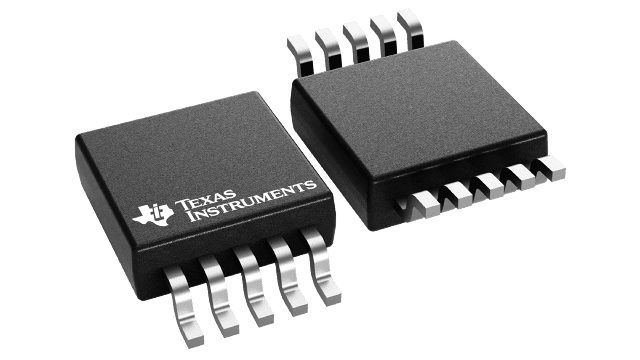

High-Speed USB 2.0 1:2 Mux/Demux Switch With Single Enable and ESD Protection 10-VSSOP -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TS3USB30EDGSR
Output ( V ) SEPARATE OUTPUT
Switching ( V ) BREAK-BEFORE-MAKE
Width (mm) 3.0000
Length (mm) 3.0000
JESD-30 Code S-PDSO-G10
Package Code TSSOP
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Normal Position ( V ) NC
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Additional Feature Configuration : 2:1 SPDT
Number of Channels 2.0000
Bandwidth-Nom (MHz) 900.0000
Number of Functions 1.0000
Number of Terminals 10.0000
Terminal Pitch (mm) 0.5000
Input Voltage-Max (V) 4.3000
Input Voltage-Min (V) 0.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type DIFFERENTIAL MULTIPLEXER
Seated Height-Max (mm) 1.1000
Supply Voltage-Max (V) 4.3000
Supply Voltage-Min (V) 3.0000
Supply Voltage-Nom (V) 3.3000
Supply Current-Max (mA) 0.0010
Switch-on Time-Max (ns) 30.0000
Switch-off Time-Max (ns) 25.0000
Moisture Sensitivity Level 1.0000
Off-state Isolation-Nom (dB) 40.0000
On-state Resistance-Max (ohm) 10.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
On-state Resistance Match-Nom (ohm) 0.3500
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
