Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TPS82671SIPR datasheet TPS82671SIPR

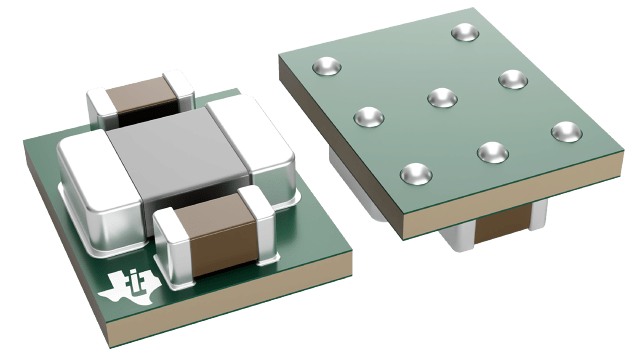

600mA Fully Integrated, Low Noise Step-Down Converter Module in MicroSiP™ Package 8-uSiP -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TPS82671SIPR
Width (mm) 2.3000
Length (mm) 2.9000
Control Mode VOLTAGE-MODE
JESD-30 Code R-PBGA-B8
Package Code VFBGA
Package Shape RECTANGULAR
Package Style ( Meter ) GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Surface Mount YES
Terminal Form BALL
J-STD-609 Code e1
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Number of Outputs 1.0000
Temperature Grade INDUSTRIAL
Terminal Position BOTTOM
Additional Feature ALSO HAS CONTROL TECHNIQUE OF PFM
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 0.8000
Input Voltage-Max (V) 4.8000
Input Voltage-Min (V) 2.3000
Input Voltage-Nom (V) 3.6000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 0.6000
Output Voltage-Max (V) 1.8000
Output Voltage-Min (V) 1.8000
Output Voltage-Nom (V) 1.8000
Seated Height-Max (mm) 1.0000
Switcher Configuration BUCK
Package Equivalence Code BGA8,3X3,40/32
Moisture Sensitivity Level 2.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 6000.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS82671SIPR optimizes energy distribution in electronic devices. Its 600mA Fully Integrated, Low Noise Step-Down Converter Module in MicroSiP™ Package 8-uSiP -40 to 85 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS82671SIPR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS82671SIPR in the documentation section.

600mA Fully Integrated, Low Noise Step-Down Converter Module in MicroSiP™ Package 8-uSiP -40 to 85
