TPS564208DDCR
Availability
Design risk
Price trend
Lead time

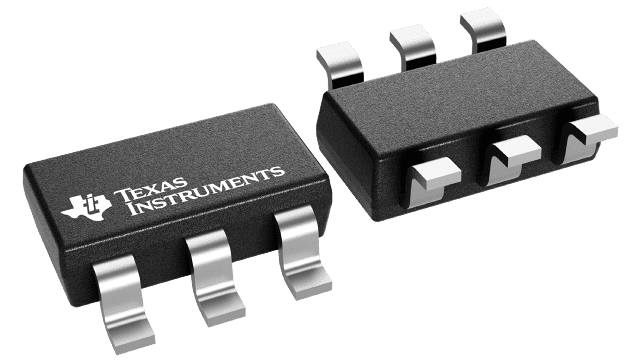

4.5 V to 17 V input, 4 A output, synchronous step-down converter in FCCM mode 6-SOT-23-THIN -40 to 125
| Width (mm) | 1.6 |
| Length (mm) | 2.9 |
| JESD-30 Code | R-PDSO-G6 |
| Package Code | TSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Terminal Finish | Tin (Sn) |
| Control Technique | PULSE WIDTH MODULATION |
| Number of Outputs | 1 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.76 TO 7V |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Terminal Pitch (mm) | 0.95 |
| Input Voltage-Max (V) | 17 |
| Input Voltage-Min (V) | 4.5 |
| Input Voltage-Nom (V) | 12 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Output Current-Max (A) | 4 |
| Output Voltage-Max (V) | 7 |
| Output Voltage-Min (V) | 0.76 |
| Seated Height-Max (mm) | 1.1 |
| Switcher Configuration | BUCK |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Switching Frequency-Max (kHz) | 560 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TPS564208DDCR in the documentation section.
4.5 V to 17 V input, 4 A output, synchronous step-down converter in FCCM mode 6-SOT-23-THIN -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, TPS564208DDCR optimizes energy distribution in electronic devices. Its 4.5 V to 17 V input, 4 A output, synchronous step-down converter in FCCM mode 6-SOT-23-THIN -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TPS564208DDCR ensures stable output voltage even when the load changes. Its 4.5 V to 17 V input, 4 A output, synchronous step-down converter in FCCM mode 6-SOT-23-THIN -40 to 125 makes it a reliable element in multi-level power systems.
