TPS3808G33DBVR
Availability
Design risk
Price trend
Lead time

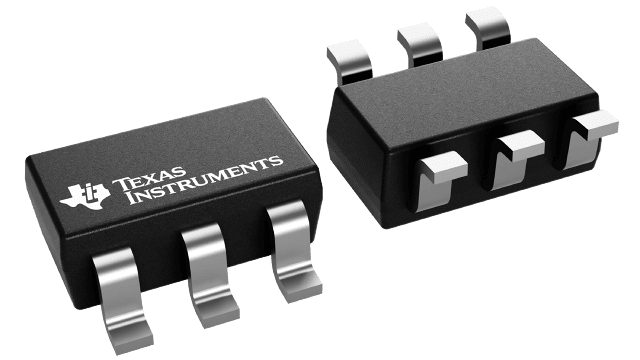

Low-quiescent current supervisor with programmable delay & manual reset 6-SOT-23 -40 to 125
| Width (mm) | 1.6 |
| Length (mm) | 2.9 |
| JESD-30 Code | R-PDSO-G6 |
| Package Code | LSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Additional Feature | BAT BUP SW:N;MNL RST:N;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:N;WD:N;WWD:N |
| Number of Channels | 1 |
| Number of Functions | 1 |
| Number of Terminals | 6 |
| Terminal Pitch (mm) | 0.95 |
| Adjustable Threshold | NO |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | VOLTAGE SUPERVISOR/RESET IC |
| Seated Height-Max (mm) | 1.45 |
| Supply Voltage-Max (V) | 6.5 |
| Supply Voltage-Min (V) | 1.8 |
| Supply Voltage-Nom (V) | 3.3 |
| Supply Current-Max (mA) | 0.0057 |
| Package Equivalence Code | TSOP6,.11,37 |
| Threshold Voltage-Nom (V) | +3.07V |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TPS3808G33DBVR in the documentation section.
Low-quiescent current supervisor with programmable delay & manual reset 6-SOT-23 -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, TPS3808G33DBVR optimizes energy distribution in electronic devices. Its Low-quiescent current supervisor with programmable delay & manual reset 6-SOT-23 -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TPS3808G33DBVR ensures stable output voltage even when the load changes. Its Low-quiescent current supervisor with programmable delay & manual reset 6-SOT-23 -40 to 125 makes it a reliable element in multi-level power systems.
