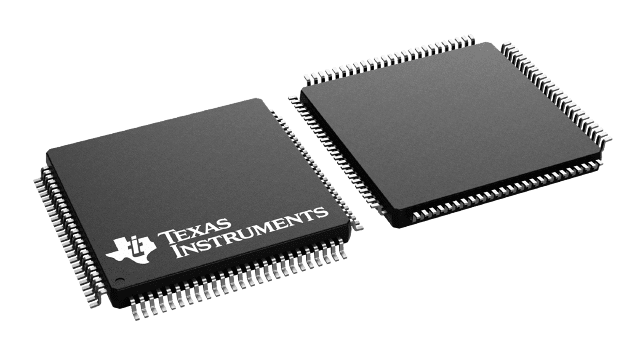

TMS320LF2406APZA
Availability
Design risk
Price trend
Lead time
16-bit DSP, 40-MHz, 32-kw flash, 100-pin 100-LQFP -40 to 85
| Format | FLOATING POINT |
| Bit Size | 16 |
| Technology | CMOS |
| Width (mm) | 14 |
| Length (mm) | 14 |
| RAM (words) | 544 |
| ADC Channels | YES |
| JESD-30 Code | S-PQFP-G100 |
| PWM Channels | YES |
| Package Code | LFQFP |
| Boundary Scan | YES |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, LOW PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Barrel Shifter | YES |
| J-STD-609 Code | e4 |
| Low Power Mode | YES |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Integrated Cache | NO |
| Number of Timers | 5 |
| Address Bus Width | 16 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Number of Terminals | 100 |
| Program Memory Type | FLASH |
| Terminal Pitch (mm) | 0.5 |
| Package Body Material | PLASTIC/EPOXY |
| Number of DMA Channels | 0 |
| On Chip Data RAM Width | 16 |
| Seated Height-Max (mm) | 1.6 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| External Data Bus Width | 16 |
| Supply Current-Max (mA) | 70 |
| Package Equivalence Code | QFP100,.63SQ,20 |
| Clock Frequency-Max (MHz) | 20 |
| Internal Bus Architecture | MULTIPLE |
| Moisture Sensitivity Level | 2 |
| Program Memory Width (bits) | 16 |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, CONTROLLER |
| Number of External Interrupts | 5 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated TMS320LF2406APZA in the documentation section.
16-bit DSP, 40-MHz, 32-kw flash, 100-pin 100-LQFP -40 to 85
As part of the category Semiconductors and subcategory Semiconductors, TMS320LF2406APZA optimizes energy distribution in electronic devices. Its 16-bit DSP, 40-MHz, 32-kw flash, 100-pin 100-LQFP -40 to 85 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, TMS320LF2406APZA ensures stable output voltage even when the load changes. Its 16-bit DSP, 40-MHz, 32-kw flash, 100-pin 100-LQFP -40 to 85 makes it a reliable element in multi-level power systems.
