Semiconductors

Other Semiconductors

Lead Time     6 weeks

Datasheet

    Download TL431AIDBZR datasheet TL431AIDBZR

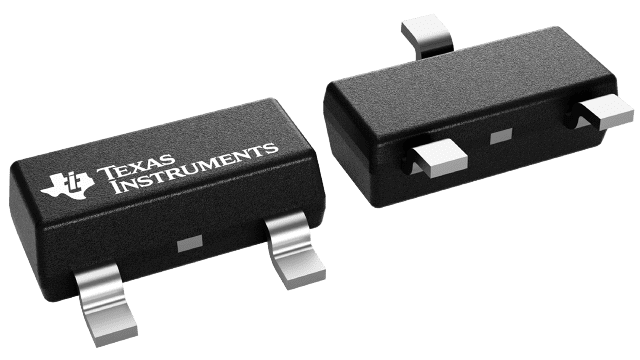

Adjustable precision shunt regulator 3-SOT-23 -40 to 85

Technical Data

Manufacturer texas instruments inc
MPN TL431AIDBZR
Technology BIPOLAR
Width (mm) 1.3000
Length (mm) 2.9200
JESD-30 Code R-PDSO-G3
Package Code TSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Number of Outputs 1.0000
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 3.0000
Terminal Pitch (mm) 0.9500
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
Output Current-Max (A) 0.1000
Output Voltage-Max (V) 2.5200
Output Voltage-Min (V) 2.4700
Output Voltage-Nom (V) 2.4950
Seated Height-Max (mm) 1.1200
Trim/Adjustable Output ( V ) YES
Package Equivalence Code TO-236
Voltage Tolerance-Max (%) 1.0000
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Temp Coef of Voltage-Max (ppm/Cel) 92.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request
