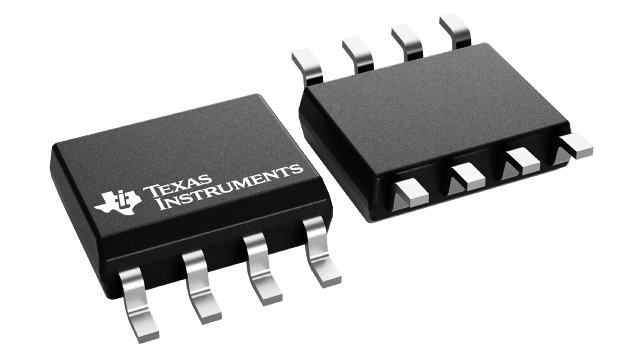

SN65HVD72DR
Availability
Design risk
Price trend
Lead time
3.3-V half-duplex RS-485 with IEC ESD, 250 kbps 8-SOIC -40 to 125
| Width (mm) | 3.9 |
| Length (mm) | 4.9 |
| JESD-30 Code | R-PDSO-G8 |
| Package Code | SOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Output Polarity | COMPLEMENTARY |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Interface IC Type | LINE TRANSCEIVER |
| Out Swing-Min (V) | 1.500000 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Interface Standard | EIA-422; EIA-485 |
| Differential Output | YES |
| Number of Functions | 1 |
| Number of Terminals | 8 |
| Terminal Pitch (mm) | 1.27 |
| Driver Number of Bits | 1 |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER |
| Package Body Material | PLASTIC/EPOXY |
| Output Characteristics | DIFFERENTIAL |
| Receive Delay-Max (ns) | 100.000000000000000 |
| Seated Height-Max (mm) | 1.75 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Receiver Number of Bits | 1 |
| Supply Current-Max (mA) | 0.95 |
| Supply Voltage1-Max (V) | 3.6000 |
| Supply Voltage1-Min (V) | 3.0000 |
| Supply Voltage1-Nom (V) | 3.3000 |
| Transmit Delay-Max (ns) | 1000.0000 |
| Package Equivalence Code | SOP8,.25 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 8.000000000000000 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
