REF3133AIDBZR
Availability
Design risk
Price trend
Lead time

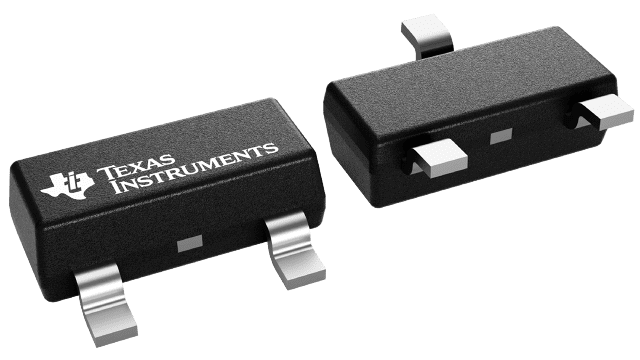

3.3-V, 20-ppm/°C max, 100-µA, 3-pin SOT-23 series voltage reference 3-SOT-23 -40 to 125
| Technology | CMOS |
| Width (mm) | 1.3 |
| Length (mm) | 2.92 |
| JESD-30 Code | R-PDSO-G3 |
| Package Code | TSSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) |
| DLA Qualification | Not Qualified |
| Number of Outputs | 1 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | DUAL |
| Number of Functions | 1 |
| Number of Terminals | 3 |
| Terminal Pitch (mm) | 0.95 |
| Input Voltage-Max (V) | 5.5 |
| Input Voltage-Min (V) | 3.35 |
| Package Body Material | PLASTIC/EPOXY |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| Output Current-Max (A) | 0.01 |
| Output Voltage-Max (V) | 3.3066 |
| Output Voltage-Min (V) | 3.2934 |
| Output Voltage-Nom (V) | 3.3 |
| Seated Height-Max (mm) | 1.12 |
| Supply Voltage-Max (V) | 5.5 |
| Supply Voltage-Min (V) | 3.35 |
| Supply Voltage-Nom (V) | 5 |
| Trim/Adjustable Output (V) | NO |
| Package Equivalence Code | TO-236 |
| Voltage Tolerance-Max (%) | 0.2 |
| Moisture Sensitivity Level | 1 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Temp Coef of Voltage-Max (ppm/Cel) | 20 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Width | 1.3 mm |
| Length | 2.92 mm |
