OPA548F/500 TEXAS INSTRUMENTS INC

no image
Availability
Unavailable
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Decreasing
Lead time
15 results found
FDN306P
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
MMSZ5231B
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
CDSOT23-T03C
Available
Available
Low
Low
Decreasing
Decreasing
Increasing
Increasing
DS3232SN#T&R
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
20682-050E-02
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
ADV7842KBCZ-5
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
MAX3373EEKA+T
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
0402B221K500CG
Constrained
Constrained
Low
Low
Stable
Stable
Stable
Stable
0603N820F500CT
Constrained
Constrained
Low
Low
Stable
Stable
Decreasing
Decreasing
0805B474J250CT
Constrained
Constrained
Low
Low
Stable
Stable
Decreasing
Decreasing
SPU0410LR5H-QB-...
Available
Available
High
High
Increasing
Increasing
Stable
Stable
XC6SLX9-2TQG144...
Available
Available
High
High
Stable
Stable
Stable
Stable
D38999/20MJ35PN...
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
S40FC004C1B1C00...
Available
Available
High
High
Decreasing
Decreasing
Increasing
Increasing
SL102470J050DAN...
Available
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Amplifiers

Lead Time     12 weeks
Data Sheet     Download OPA548F/500 datasheet OPA548F/500

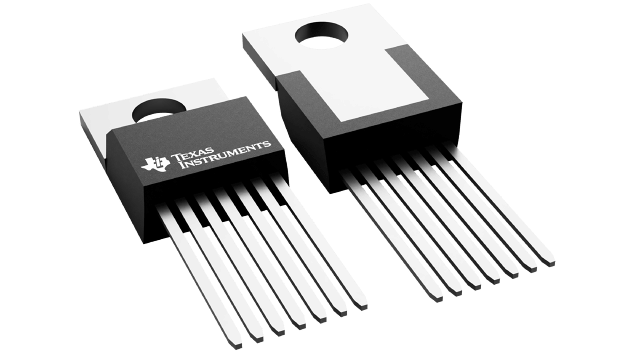

High-voltage, high-current, wide-output-voltage-swing power operational amplifier 7-DDPAK/TO-263 -40 to 85

Technical Data

Manufacturer texas instruments inc
MPN OPA548F/500
Power YES
Low-Bias NO
Wideband NO
Low-Offset NO
Micropower NO
Width (mm) 8.8900
Length (mm) 10.0950
JESD-30 Code R-PSSO-G7
Package Code TO-263
Sub Category Operational Amplifier
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
Amplifier Type Power
J-STD-609 Code e3
Packing Method TR
Terminal Finish Matte Tin (Sn)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 31620.0000
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position SINGLE
Programmable Power YES
Number of Functions 1.0000
Number of Terminals 7.0000
Terminal Pitch (mm) 1.2700
Slew Rate-Nom (V/us) 10.0000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 4.9550
Supply Voltage-Nom (V) 30.0000
Supply Current-Max (mA) 20.0000
Unity Gain BW-Nom (kHz) 1000.0000
Package Equivalence Code SMSIP7H,.55,50TB
Moisture Sensitivity Level 2.0000
Supply Voltage Limit-Max (V) 30.0000
Input Offset Voltage-Max (uV) 10000.0000
Peak Reflow Temperature (Cel) 260.0000
Negative Supply Voltage-Nom (V) -30.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.5000
Neg Supply Voltage Limit-Max (V) -30.0000
Common-mode Reject Ratio-Min (dB) 80.0000
Common-mode Reject Ratio-Nom (dB) 95.0000
Average Bias Current-Max (IIB) (uA) -0.5000
Time@Peak Reflow Temperature-Max (s) 30.0000
Width 8.89 mm
Length 10.1 mm
Availability In stock

Submit Request
