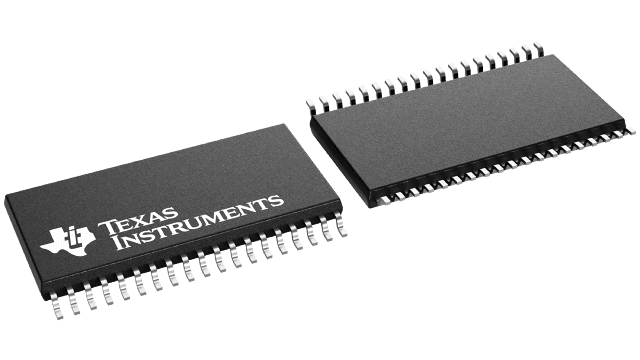

MSP430F2232IRHAR
Availability
Design risk
Price trend
Lead time
16 MHz MCU with 8KB Flash, 512B SRAM, UART/SPI/I2C, timer 40-VQFN -40 to 85
| Format | FIXED POINT |
| Bit Size | 16 |
| CPU Family | MSP430 |
| Technology | BIPOLAR |
| Width (mm) | 6 |
| Length (mm) | 6 |
| Peripherals | "BOD, COMPARATOR(8), TIMER(6), WDT" |
| RAM (words) | 0.5 |
| Speed (MHz) | 16 |
| ADC Channels | YES |
| Connectivity | "I2C, IRDA, LIN, SPI(2), UART, USCI(2)" |
| DAC Channels | NO |
| DMA Channels | NO |
| JESD-30 Code | S-PQCC-N40 |
| PWM Channels | YES |
| Package Code | HVQCCN |
| Boundary Scan | YES |
| Package Shape | SQUARE |
| Package Style (Meter) | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Surface Mount | YES |
| Terminal Form | NO LEAD |
| A/D Converters | 12-Ch 10-Bit |
| J-STD-609 Code | e4 |
| Low Power Mode | YES |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Integrated Cache | NO |
| Number of Timers | 6 |
| Address Bus Width | 0 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Number of I/O Lines | 32 |
| Number of Terminals | 40 |
| Program Memory Type | FLASH |
| Terminal Pitch (mm) | 0.5 |
| Data RAM Size (bytes) | 512 |
| Number of Serial I/Os | 2 |
| Package Body Material | PLASTIC/EPOXY |
| Number of DMA Channels | 0 |
| On Chip Data RAM Width | 8 |
| Seated Height-Max (mm) | 1 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 2.2 |
| Supply Voltage-Nom (V) | 2.2 |
| External Data Bus Width | 0 |
| Supply Current-Max (mA) | 0.55 |
| Data EEPROM Size (bytes) | 0 |
| Package Equivalence Code | LCC40,.24SQ,20 |
| Clock Frequency-Max (MHz) | 16 |
| Moisture Sensitivity Level | 3 |
| Program Memory Size (words) | 8192 |
| Program Memory Width (bits) | 8 |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
