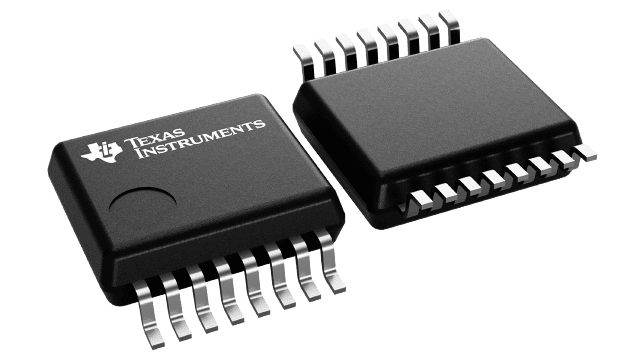

MAX3221CDBR
Availability
Design risk
Price trend
Lead time
3- to 5.5-V single channel 250kbps RS-232 line driver/receiver with +/-15-kV ESD protection 16-SSOP 0 to 70
| Technology | CMOS |
| Width (mm) | 5.3 |
| Length (mm) | 6.2 |
| JESD-30 Code | R-PDSO-G16 |
| Package Code | SSOP |
| Package Shape | RECTANGULAR |
| Package Style (Meter) | SMALL OUTLINE, SHRINK PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e4 |
| Output Polarity | INVERTED |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Interface IC Type | LINE TRANSCEIVER |
| Out Swing-Min (V) | 10.000000 |
| Temperature Grade | COMMERCIAL |
| Terminal Position | DUAL |
| Additional Feature | ALSO OPERATE WITH 5V SUPPLY |
| Interface Standard | EIA-232-F; TIA-232-F; V.28 |
| Differential Output | NO |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Terminal Pitch (mm) | 0.65 |
| Driver Number of Bits | 1 |
| Input Characteristics | SCHMITT TRIGGER |
| Package Body Material | PLASTIC/EPOXY |
| Receive Delay-Max (ns) | 150.000000000000000 |
| Seated Height-Max (mm) | 2 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| Receiver Number of Bits | 1 |
| Supply Current-Max (mA) | 1 |
| Supply Voltage1-Max (V) | 5.5000 |
| Supply Voltage1-Min (V) | 4.5000 |
| Supply Voltage1-Nom (V) | 5.0000 |
| Package Equivalence Code | SSOP16,.3 |
| Moisture Sensitivity Level | 1 |
| Output Low Current-Max (mA) | 1.600000000000000 |
| Peak Reflow Temperature (Cel) | 260 |
| Operating Temperature-Max (Cel) | 70 |
| Operating Temperature-Min (Cel) | 0 |
| High Level Input Current-Max (A) | 0.000001000000000 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
