Semiconductors

Other Semiconductors

Lead Time     12 weeks

Datasheet

    Download LM5022MMX/NOPB datasheet LM5022MMX/NOPB

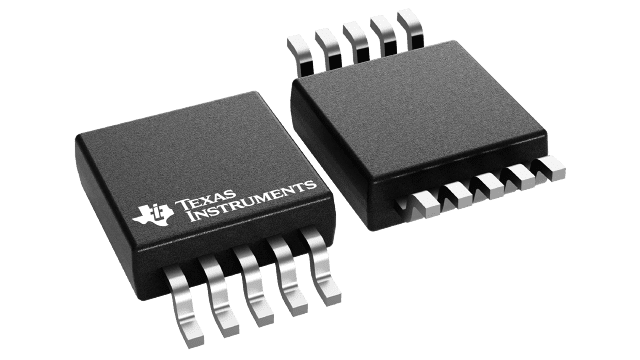

6-60V Wide Vin, current mode boost, SEPIC and Flyback controller 10-VSSOP -40 to 125

Technical Data

Manufacturer texas instruments inc
MPN LM5022MMX/NOPB
Width (mm) 3.0000
Length (mm) 3.0000
Control Mode CURRENT-MODE
JESD-30 Code S-PDSO-G10
Package Code TSSOP
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish Matte Tin (Sn)
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Number of Outputs 1.0000
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 10.0000
Terminal Pitch (mm) 0.5000
Input Voltage-Max (V) 60.0000
Input Voltage-Min (V) 6.0000
Input Voltage-Nom (V) 24.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING CONTROLLER
Output Current-Max (A) 10.0000
Output Voltage-Max (V) 300.0000
Output Voltage-Min (V) 1.2500
Seated Height-Max (mm) 1.1000
Switcher Configuration BUCK-BOOST
Package Equivalence Code TSSOP10,.19,20
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 2200.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
