ADS8556IPMR
Availability
Design risk
Price trend
Lead time

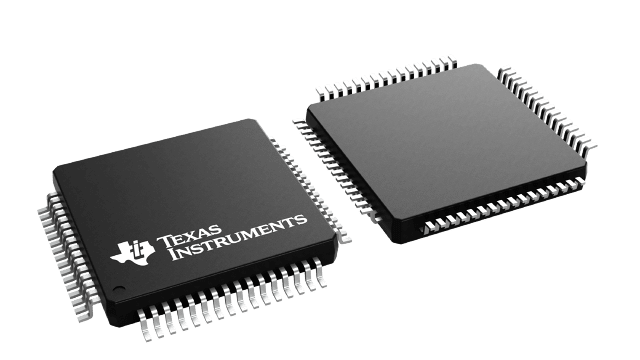

630kSPS 6-Channel Simultaneous-Sampling ADC 64-LQFP -40 to 125
| Technology | CMOS |
| Width (mm) | 10 |
| Length (mm) | 10 |
| JESD-30 Code | S-PQFP-G64 |
| Package Code | LFQFP |
| Output Format | SERIAL, PARALLEL, WORD |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK, LOW PROFILE, FINE PITCH |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION |
| J-STD-609 Code | e4 |
| Number of Bits | 16 |
| Output Bit Code | BINARY, 2S COMPLEMENT BINARY |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| DLA Qualification | Not Qualified |
| Sample Rate (MHz) | 0.63 |
| Temperature Grade | AUTOMOTIVE |
| Terminal Position | QUAD |
| Number of Functions | 1 |
| Number of Terminals | 64 |
| Terminal Pitch (mm) | 0.5 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 1.6 |
| Supply Voltage-Min (V) | 2.7 |
| Supply Voltage-Nom (V) | 5 |
| Supply Current-Max (mA) | 36 |
| Conversion Time-Max (us) | 1.26 |
| Package Equivalence Code | QFP64,.47SQ,20 |
| Moisture Sensitivity Level | 3 |
| Analog Input Voltage-Max (V) | 12 |
| Analog Input Voltage-Min (V) | -12 |
| Linearity Error-Max (EL) (%) | 0.0061 |
| Number of Analog In Channels | 6 |
| Peak Reflow Temperature (Cel) | 260 |
| Sample-and-Hold/Track-and-Hold | SAMPLE |
| Operating Temperature-Max (Cel) | 125 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Configuration | S/H-ADC |
Submit request
CONTACT REASON
Sourceability North America, LLC
9715 Burnet Rd, Ste 200You can download the user manual and technical specifications for Texas Instruments Incorporated ADS8556IPMR in the documentation section.
630kSPS 6-Channel Simultaneous-Sampling ADC 64-LQFP -40 to 125
As part of the category Semiconductors and subcategory Semiconductors, ADS8556IPMR optimizes energy distribution in electronic devices. Its 630kSPS 6-Channel Simultaneous-Sampling ADC 64-LQFP -40 to 125 allows minimizing losses and increasing the overall system efficiency.
As a component of the subcategory Semiconductors, ADS8556IPMR ensures stable output voltage even when the load changes. Its 630kSPS 6-Channel Simultaneous-Sampling ADC 64-LQFP -40 to 125 makes it a reliable element in multi-level power systems.
