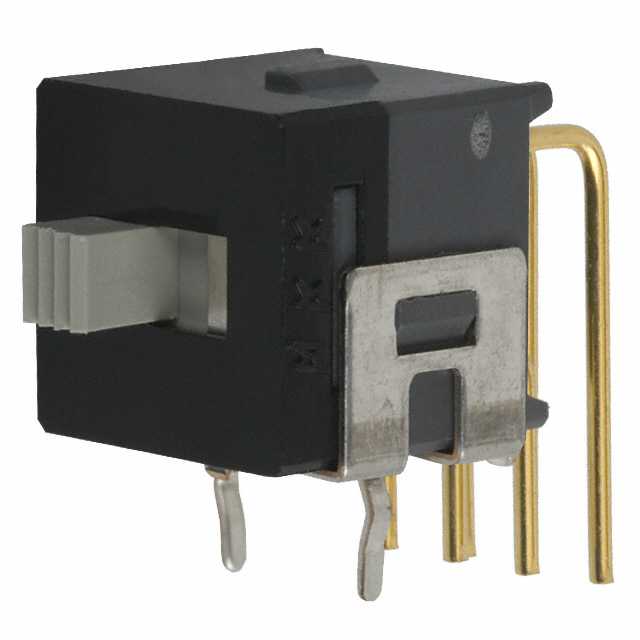

AS22AH

SWITCH SLIDE DPDT 0.4VA 28V

Request price

Technical Data

Manufacturer nkk switches co ltd

MPN AS22AH

Switch Type SLIDE SWITCH

Actuator Type SLIDE

Solderability WAVE

Switch Action LATCHED

Actuator Color WHITE

J-STD-609 Code e4

PCB Hole Count 8.0000

Switch Function DPDT

Terminal Finish GOLD

Body Height (mm) 15.2146

Contact Function ON-ON

Housing Material GLASS FILLED NYLON

Mounting Feature THROUGH HOLE-RIGHT ANGLE

Termination Type SOLDER

Actuator Material GLASS FILLED POLYAMIDE

Body Breadth (mm) 10.0076

Terminal Material BRASS

Additional Feature MOUNTING BRACKET

Insulator Material CARBON COMPOSITE POLYMER

End Contact Plating GOLD OVER NICKEL

Number of Positions 2.0000

Actuator Angle (deg) 0.0000

End Contact Material BRASS

Actuator Length (inch) 0.0980

Center Contact Plating GOLD OVER SILVER

Terminal Length (inch) 0.1420

Center Contact Material PHOSPHOR BRONZE

Contact Resistance (mohm) 50.0000

Electrical Life (Cycle(s)) 50000.0000

Insulation Resistance (ohm) 500000000.0000

Body Length or Diameter (mm) 9.8044

Dielectric Withstand Volts (V) 500VAC

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) -10.0000

Contact DC Max Power Rating R Load 0.4VA@28VDC

Availability In stock
