Semiconductors

Logic ICs

Lead Time     10 weeks

4-bit dual supply translating transceiver with configurable voltage translation; 3-state

Technical Data

Manufacturer NEXPERIA
MPN 74AVC4T245PW,118
Family AVC
Technology CMOS
Width (mm) 4.4000
Length (mm) 5.0000
JESD-30 Code R-PDSO-G16

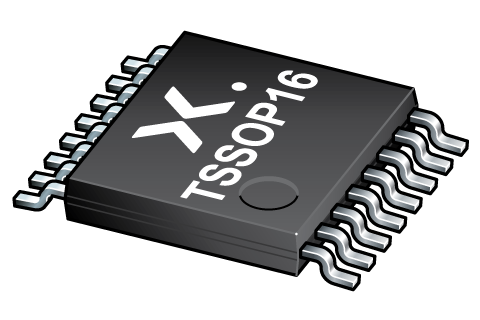

Package Code TSSOP
Logic IC Type BUS TRANSCEIVER
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Number of Bits 2.0000
Packing Method TR, 13 INCH
Number of Ports 2.0000
Output Polarity TRUE
Terminal Finish NICKEL PALLADIUM GOLD
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 2.0000
Number of Terminals 16.0000
Terminal Pitch (mm) 0.6500
Load Capacitance (pF) 15.0000
Package Body Material PLASTIC/EPOXY
Output Characteristics 3-STATE
Propagation Delay (ns) 14.5000
Seated Height-Max (mm) 1.1000
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 0.8000
Supply Voltage-Nom (V) 2.5000
Supply Current-Max (mA) 0.0160
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 12.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Propagation Delay-Max@Nom-Sup (ns) 11.3000
Time@Peak Reflow Temperature-Max (s) 30.0000
Number of Elements 2.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Logic ICs, 74AVC4T245PW,118 optimizes energy distribution in electronic devices. Its 4-bit dual supply translating transceiver with configurable voltage translation; 3-state allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Logic ICs, 74AVC4T245PW,118 ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for 74AVC4T245PW,118 in the documentation section.
