Semiconductors

Transient Suppressors

Lead Time     10 weeks

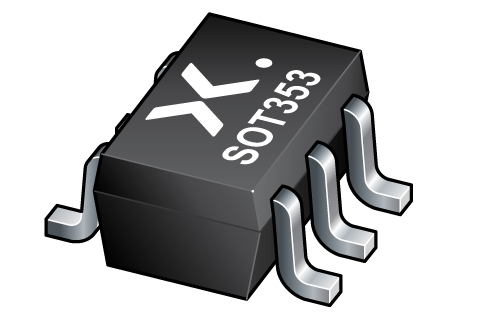

Low capacitance unidirectional quadruple ESD protection diode arrays

Technical Data

Manufacturer NEXPERIA
MPN PESD3V3L4UG,115
Polarity UNIDIRECTIONAL
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Technology AVALANCHE
JESD-30 Code R-PDSO-G5
Configuration COMMON ANODE, 4 ELEMENTS
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish TIN
Terminal Position DUAL
Number of Elements 4.0000
Number of Terminals 5.0000
Package Body Material PLASTIC/EPOXY
Diode Element Material SILICON
Breakdown Voltage-Max (V) 5.8800
Breakdown Voltage-Min (V) 5.3200
Power Dissipation-Max (W) 0.3000
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Rep Pk Reverse Voltage-Max (V) 3.3000
Operating Temperature-Max (Cel) 150.0000
Non-rep Peak Rev Power Dis-Max (W) 30.0000
Screening Level / Reference Standard IEC-60134; IEC-61000-4-2, 4-5
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Transient Suppressors, PESD3V3L4UG,115 optimizes energy distribution in electronic devices. Its Low capacitance unidirectional quadruple ESD protection diode arrays allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Transient Suppressors, PESD3V3L4UG,115 ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for PESD3V3L4UG,115 in the documentation section.

Low capacitance unidirectional quadruple ESD protection diode arrays
