Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download XR76208ELTR-F datasheet XR76208ELTR-F

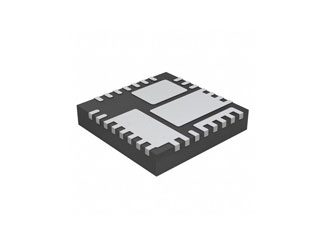

Conv DC-DC 5.5V to 40V Synchronous Step Down Single-Out 0.6V to 30V 8A 30-Pin QFN EP T/R

Technical Data

Manufacturer maxlinear inc
MPN XR76208ELTR-F
Width (mm) 5.0000
Length (mm) 5.0000
Control Mode CURRENT-MODE
JESD-30 Code S-XQCC-N30
Package Code QCCN
Package Shape SQUARE
Package Style ( Meter ) CHIP CARRIER
Surface Mount YES
Terminal Form NO LEAD
Temperature Grade AUTOMOTIVE
Terminal Position QUAD
Number of Functions 1.0000
Number of Terminals 30.0000
Input Voltage-Max (V) 40.0000
Input Voltage-Min (V) 5.0000
Input Voltage-Nom (V) 24.0000
Package Body Material UNSPECIFIED
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 8.0000
Seated Height-Max (mm) 1.0000
Switcher Configuration BUCK
Peak Reflow Temperature (Cel) NOT SPECIFIED
Switching Frequency-Max (kHz) 800.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, XR76208ELTR-F optimizes energy distribution in electronic devices. Its Conv DC-DC 5.5V to 40V Synchronous Step Down Single-Out 0.6V to 30V 8A 30-Pin QFN EP T/R allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, XR76208ELTR-F ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for XR76208ELTR-F in the documentation section.

Conv DC-DC 5.5V to 40V Synchronous Step Down Single-Out 0.6V to 30V 8A 30-Pin QFN EP T/R
