Interconnects

RF Connectors

Lead Time     12 weeks

Datasheet

    Download 20279-001E-03 datasheet 20279-001E-03

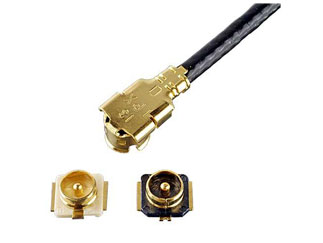

MHF Receptacles, 3 Pad Type

Technical Data

Manufacturer i-pex co ltd
MPN 20279-001E-03
VSWR 1.8000
Option GENERAL PURPOSE
Body Depth ( inch ) 0.0490
Body Length ( inch ) 0.1020
Panel Mount NO
Body Breadth ( inch ) 0.1020
Shell Finish GOLD
Body Diameter ( inch ) 0.0790
Coupling Type SNAP
JESD-609 Code e4
Mounting Type BOARD
Connector Type RF MHF CONNECTOR
Contact Gender MALE
Filter Feature NO
Mounting Style STRAIGHT
Shell Material PHOSPHOR BRONZE
DIN Conformance NO
IEC Conformance NO
MIL Conformance NO
Body/Shell Style RECEPTACLE
Contact Material COPPER ALLOY
Termination Type SURFACE MOUNT
Additional Feature SHIELDED
Insulator Material LIQUID CRYSTAL POLYMER
Contact Finish - Mating GOLD
Operating Frequency-Max ( GHz ) 9.0000
Characteristic Impedance ( ohm ) 50.0000
Total Number of Contacts 1.0000
Operating Temperature-Max ( Cel ) 90.0000
Operating Temperature-Min ( Cel ) -40.0000
Contact Finish - Termination GOLD OVER NICKEL
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

20279-001E-03 from the subcategory RF Connectors ensures strong and durable connections between components. It guarantees resistance to vibrations and frequent connections, which is particularly important in industrial and transportation systems.

Thanks to its construction, characteristic of RF Connectors, 20279-001E-03 allows wires to be quickly connected and disconnected without additional tools. Its MHF Receptacles, 3 Pad Type, makes it an ideal solution for systems that require regular maintenance.

You can download the user manual and technical specifications for 20279-001E-03 in the documentation section.

MHF Receptacles, 3 Pad Type
