Semiconductors

Other Semiconductors

Lead Time     24 weeks
Data Sheet     Download AP2553AW6-7 datasheet AP2553AW6-7

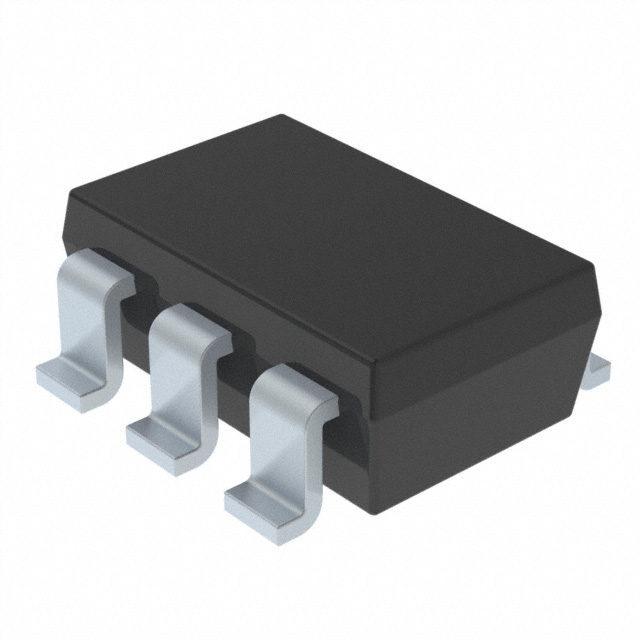

Power Switch Hi Side 1-OUT 0A 0.07Ohm 6-Pin SOT-26 T/R

Technical Data

Manufacturer DIODES INC
MPN AP2553AW6-7
Width (mm) 1.6000
Length (mm) 3.0000
JESD-30 Code R-PDSO-G6
Package Code LSSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
Terminal Finish MATTE TIN
Terminal Position DUAL
Number of Channels 1.0000
Number of Functions 1.0000
Number of Terminals 6.0000
Terminal Pitch (mm) 0.9500
Adjustable Threshold YES
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type LOAD SWITCH
Seated Height-Max (mm) 1.4000
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 2.7000
Supply Voltage-Nom (V) 5.0000
Package Equivalence Code TSOP6,.11,37
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, AP2553AW6-7 optimizes energy distribution in electronic devices. Its Power Switch Hi Side 1-OUT 0A 0.07Ohm 6-Pin SOT-26 T/R allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, AP2553AW6-7 ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for AP2553AW6-7 in the documentation section.
