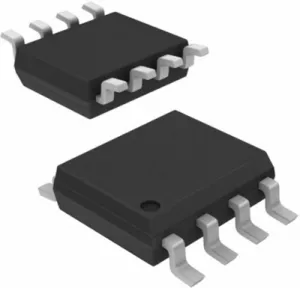

FM25W256-GTR CYPRESS SEMICONDUCTOR CORP

FM25W256-GTR CYPRESS SEMICONDUCTOR CORP
Availability
Unavailable
FM25W256-GTR Availability: Out of Stock
Design risk
Medium
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
BAV21WS
BAV21WS Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
EPC2036
EPC2036 Availability: In Stock
Available
Medium
Medium
Decreasing
Decreasing
Stable
Stable
292303-9
292303-9 Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Increasing
Increasing
DB106-BP
DB106-BP Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Decreasing
Decreasing
52030-1029
52030-1029 Availability: In Stock
Available
High
High
Stable
Stable
Stable
Stable
WR04X332JTL
WR04X332JTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR06X1001FTL
WR06X1001FTL Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Increasing
Increasing
WR06X82R0FGL
WR06X82R0FGL Availability: Out of Stock
Unavailable
Low
Low
Stable
Stable
Stable
Stable
0603B102K500CG
0603B102K500CG Availability: Out of Stock
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable
1206B475K250CT
1206B475K250CT Availability: Out of Stock
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
AD8605ARTZ-REEL...
AD8605ARTZ-REEL7 Availability: Out of Stock
Constrained
Low
Low
Increasing
Increasing
Decreasing
Decreasing
YU1AH472M130DAM...
YU1AH472M130DAMD0H Availability: Out of Stock
Constrained
Low
Low
Stable
Stable
Stable
Stable
88E1512-A0-NNP2...
88E1512-A0-NNP2I000 Availability: Out of Stock
Constrained
Low
Low
Increasing
Increasing
Stable
Stable
08FHA-SM1-GAN-E...
08FHA-SM1-GAN-ETB(HF) Availability: In Stock
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
MT25QU128ABA1EW...
MT25QU128ABA1EW7-0SIT Availability: In Stock
Available
Low
Low
Stable
Stable
Decreasing
Decreasing

Semiconductors

Memory ICs

Datasheet

    Download FM25W256-GTR datasheet FM25W256-GTR

Memory ICs, FM25W256-GTR, Cypress The FM24W256 is a 256-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM 100 trillion read/write cycles or 100 million times more write cycles than EEPROM. The device uses the high-speed SPI bus, which enhances the high-speed write capability of F-RAM technology. Features High-endurance 100 trillion read/writes Very fast serial peripheral interface (SPI) Sophisticated write protection scheme Low power consumption Restriction of hazardous substances (RoHS) compliant

Technical Data

Manufacturer cypress semiconductor corp
MPN FM25W256-GTR
Technology CMOS
Width (mm) 3.8985
Length (mm) 4.8890
JESD-30 Code R-PDSO-G8
Memory Width 8.0000
Package Code SOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
Memory IC Type FRAM
Operating Mode SYNCHRONOUS
Parallel/Serial SERIAL
Serial Bus Type SPI
Terminal Finish Pure Tin (Sn)
Write Protection HARDWARE/SOFTWARE
DLA Qualification Not Qualified
Terminal Position DUAL
Additional Feature 4KV ESD AVAILABLE
Memory Organization 32KX8
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Access Time-Max (ns) 20.0000
Number of Words Code 32K
Memory Density (bits) 262144.0000
Package Body Material PLASTIC/EPOXY
Seated Height-Max (mm) 1.7270
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 2.7000
Supply Voltage-Nom (V) 3.3000
Data Retention Time-Min 10.0000
Number of Words (words) 32768.0000
Standby Current-Max (A) 0.0000
Standby Voltage-Min (V) 2.7000
Supply Current-Max (mA) 2.0000
Package Equivalence Code SOP8,.25
Clock Frequency-Max (MHz) 20.0000
Moisture Sensitivity Level 3.0000
Peak Reflow Temperature (Cel) 260.0000
Endurance (Write/Erase Cycles) 100000000000000.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Memory ICs, FM25W256-GTR optimizes energy distribution in electronic devices. Its Memory ICs, FM25W256-GTR, Cypress The FM24W256 is a 256-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM 100 trillion read/write cycles or 100 million times more write cycles than EEPROM. The device uses the high-speed SPI bus, which enhances the high-speed write capability of F-RAM technology. Features High-endurance 100 trillion read/writes Very fast serial peripheral interface (SPI) Sophisticated write protection scheme Low power consumption Restriction of hazardous substances (RoHS) compliant allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Memory ICs, FM25W256-GTR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for FM25W256-GTR in the documentation section.

Memory ICs, FM25W256-GTR, Cypress The FM24W256 is a 256-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM 100 trillion read/write cycles or 100 million times more write cycles than EEPROM. The device uses the high-speed SPI bus, which enhances the high-speed write capability of F-RAM technology. Features High-endurance 100 trillion read/writes Very fast serial peripheral interface (SPI) Sophisticated write protection scheme Low power consumption Restriction of hazardous substances (RoHS) compliant
