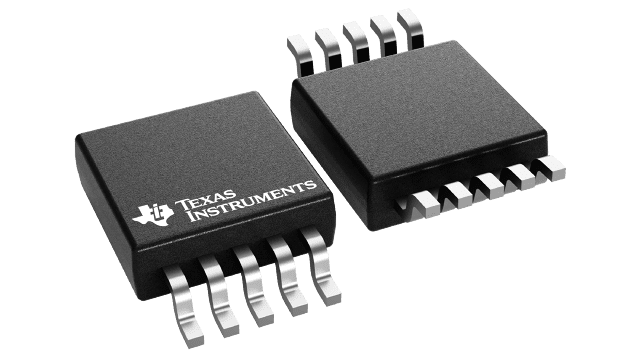

TS3A24157DGSR

TEXAS INSTRUMENTS INC

TS3A24157DGSR

TS3A24157DGSR

TS3A24157DGSR

Availability
Available
Availability
Design risk
Low
Design risk
Price trend
Decreasing
Price trend
Lead time
Decreasing
Lead time
15 results found
3240191
Available
Available
Low
Low
Increasing
Increasing
Increasing
Increasing
7113K455
Available
Available
High
High
Stable
Stable
Stable
Stable
CR10-2491-FK
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
MP5016HGQH-Z
Available
Available
Medium
Medium
Decreasing
Decreasing
Stable
Stable
SRR1005-220Y
Available
Available
Medium
Medium
Decreasing
Decreasing
Increasing
Increasing
SS10U100PQF1
Available
Available
High
High
Stable
Stable
Stable
Stable
TDA5210XUMA1
Available
Available
High
High
Stable
Stable
Stable
Stable
WR06X1000FTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
C8051F311-GMR
Constrained
Constrained
High
High
Decreasing
Decreasing
Stable
Stable
0402B333K250CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0603B105K500CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Increasing
Increasing
RF15N0R5A500CT
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
K4A4G165WE-BCRC
Available
Available
High
High
Stable
Stable
Stable
Stable
LT3748IMS#TRPBF
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
PEX8624-BB50RBC...
Available
Available
High
High
Stable
Stable
Decreasing
Decreasing

Semiconductors

Logic ICs

Lead Time     6 weeks
Data Sheet     Download TS3A24157DGSR datasheet TS3A24157DGSR

0.65-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch 10-VSSOP -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN TS3A24157DGSR
Output SEPARATE OUTPUT
Switching BREAK-BEFORE-MAKE
Width (mm) 3.0000
Length (mm) 3.0000
JESD-30 Code S-PDSO-G10
Package Code TSSOP
Package Shape SQUARE
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Additional Feature Configuration : 2:1 SPDT
Number of Channels 2.0000
Bandwidth-Nom (MHz) 50.0000
Number of Functions 2.0000
Number of Terminals 10.0000
Terminal Pitch (mm) 0.5000
Input Voltage-Max (V) 3.6000
Input Voltage-Min (V) 0.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SPDT
Seated Height-Max (mm) 1.1000
Signal Current-Max (A) 0.1000
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 1.6500
Supply Voltage-Nom (V) 1.8000
Supply Current-Max (mA) 0.0010
Switch-on Time-Max (ns) 80.0000
Package Equivalence Code TSSOP10,.19,20
Switch-off Time-Max (ns) 40.0000
Moisture Sensitivity Level 1.0000
Off-state Isolation-Nom (dB) 73.0000
On-state Resistance-Max (ohm) 1.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
On-state Resistance Match-Nom (ohm) 0.1500
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Logic ICs, TS3A24157DGSR optimizes energy distribution in electronic devices. Its 0.65-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch 10-VSSOP -40 to 85 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Logic ICs, TS3A24157DGSR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TS3A24157DGSR in the documentation section.

0.65-Ω on-state resistance, 3.3-V, 2:1 (SPDT), 2-channel analog switch 10-VSSOP -40 to 85
