OPA376AIDCKR

TEXAS INSTRUMENTS INC

OPA376AIDCKR

OPA376AIDCKR

OPA376AIDCKR

Availability
Unavailable
Availability
Design risk
Low
Design risk
Price trend
Increasing
Price trend
Lead time
Stable
Lead time
15 results found
SMD185F-2
Available
Available
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR06X000PTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR06X1002FTL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
WR06X4702FGL
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
TL3365AF180QG
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable
TLP2367(TPR,E
Available
Available
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
0603N180J500CT
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
ADUM1402ARWZ-RL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Increasing
Increasing
CL05A475MP5NRNC
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
DS2482S-100+T&R
Available
Available
Medium
Medium
Decreasing
Decreasing
Increasing
Increasing
SPH252010H1R0MT
Available
Available
High
High
Stable
Stable
Stable
Stable
MX25L3233FM2I-0...
Available
Available
High
High
Decreasing
Decreasing
Increasing
Increasing
RB520S30_R1_000...
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
MT18KSF1G72HZ-1...
Available
Available
High
High
Stable
Stable
Stable
Stable
DF40HC(4.0)-60D...
Available
Available
Low
Low
Decreasing
Decreasing
Stable
Stable

Semiconductors

Amplifiers

Lead Time     12 weeks
Data Sheet     Download OPA376AIDCKR datasheet OPA376AIDCKR

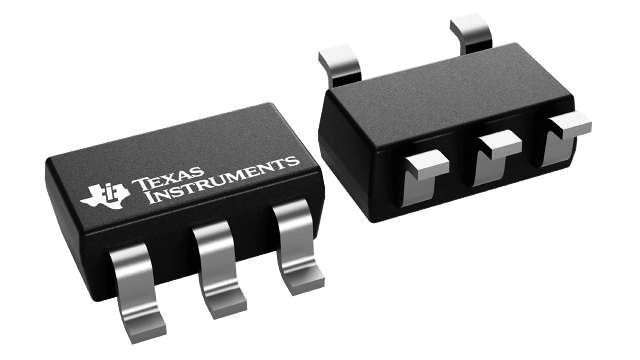

Precision (0.025mV), low noise (7.5nV/rtHz), low quiescent current (760uA) op amp 5-SC70 -40 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN OPA376AIDCKR
Power NO
Low-Bias YES
Wideband NO
Low-Offset YES
Micropower NO
Technology CMOS
Width (mm) 1.2500
Length (mm) 2.0000
JESD-30 Code R-PDSO-G5
Package Code TSSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
Amplifier Type General Purpose
J-STD-609 Code e4
Packing Method TR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 1000000.0000
DLA Qualification Not Qualified
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Programmable Power NO
Number of Functions 1.0000
Number of Terminals 5.0000
Terminal Pitch (mm) 0.6500
Slew Rate-Nom (V/us) 2.0000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 1.1000
Supply Voltage-Nom (V) 2.2000
Supply Current-Max (mA) 0.9500
Unity Gain BW-Nom (kHz) 5500.0000
Package Equivalence Code TSSOP5/6,.08
Moisture Sensitivity Level 2.0000
Supply Voltage Limit-Max (V) 7.0000
Input Offset Voltage-Max (uV) 25.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.0000
Common-mode Reject Ratio-Min (dB) 76.0000
Common-mode Reject Ratio-Nom (dB) 90.0000
Average Bias Current-Max (IIB) (uA) 0.0000
Input Offset Current-Max (IIO) (uA) 0.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Amplifiers, OPA376AIDCKR optimizes energy distribution in electronic devices. Its Precision (0.025mV), low noise (7.5nV/rtHz), low quiescent current (760uA) op amp 5-SC70 -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Amplifiers, OPA376AIDCKR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for OPA376AIDCKR in the documentation section.

Precision (0.025mV), low noise (7.5nV/rtHz), low quiescent current (760uA) op amp 5-SC70 -40 to 125
