Semiconductors

uPs/uCs/Peripheral ICs

Lead Time     2 weeks
Data Sheet     Download CDCV304PWR datasheet CDCV304PWR

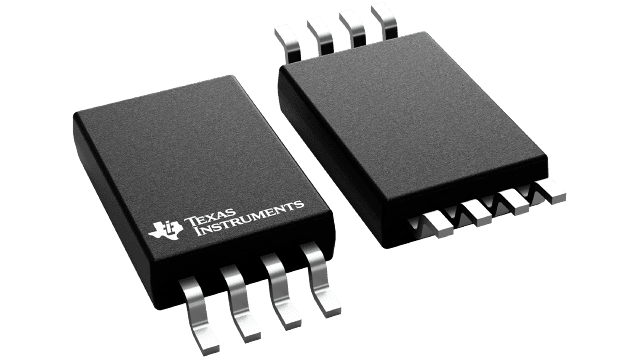

General purpose and PCI-X 1:4 LVCMOS clock buffer 8-TSSOP -40 to 85

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN CDCV304PWR
Family 304.0000
Width (mm) 3.0000
Length (mm) 4.4000
JESD-30 Code R-PDSO-G8
Package Code TSSOP
Logic IC Type LOW SKEW CLOCK DRIVER
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Packing Method TR
fmax-Min (MHz) 200.0000
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
DLA Qualification Not Qualified
Temperature Grade INDUSTRIAL
Terminal Position DUAL
Input Conditioning STANDARD
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 0.6500
Load Capacitance (pF) 10.0000
Package Body Material PLASTIC/EPOXY
Number of True Outputs 4.0000
Output Characteristics 3-STATE
Propagation Delay (ns) 4.5000
Seated Height-Max (mm) 1.2000
Supply Voltage-Max (V) 3.6000
Supply Voltage-Min (V) 2.3000
Supply Voltage-Nom (V) 2.5000
Package Equivalence Code TSSOP8,.25
Moisture Sensitivity Level 1.0000
Number of Inverted Outputs 0.0000
Output Low Current-Max (mA) 24.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 85.0000
Operating Temperature-Min (Cel) -40.0000
Propagation Delay-Max@Nom-Sup (ns) 3.0000
Same Edge Clock Skew Delay-Max (ns) 0.1500
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory uPs/uCs/Peripheral ICs, CDCV304PWR optimizes energy distribution in electronic devices. Its General purpose and PCI-X 1:4 LVCMOS clock buffer 8-TSSOP -40 to 85 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory uPs/uCs/Peripheral ICs, CDCV304PWR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for CDCV304PWR in the documentation section.

General purpose and PCI-X 1:4 LVCMOS clock buffer 8-TSSOP -40 to 85
