Lead Time     6 weeks
Data Sheet     Download CD4001BPWR datasheet CD4001BPWR

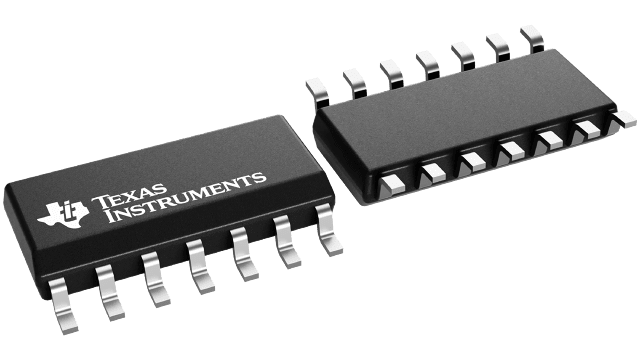

4-ch, 2-input, 3-V to 18-V NOR gates 14-TSSOP -55 to 125

Technical Data

Manufacturer TEXAS INSTRUMENTS INC
MPN CD4001BPWR
Family 4000/14000/40000
Technology CMOS
Width (mm) 4.4000
Length (mm) 5.0000
JESD-30 Code R-PDSO-G14
Package Code TSSOP
Logic IC Type NOR GATE
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Packing Method TR
Schmitt Trigger NO
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Number of Inputs 2.0000
DLA Qualification Not Qualified
Temperature Grade MILITARY
Terminal Position DUAL
Number of Functions 4.0000
Number of Terminals 14.0000
Terminal Pitch (mm) 0.6500
Load Capacitance (pF) 50.0000
Package Body Material PLASTIC/EPOXY
Propagation Delay (ns) 250.0000
Seated Height-Max (mm) 1.2000
Supply Voltage-Max (V) 18.0000
Supply Voltage-Min (V) 3.0000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 0.0300
Package Equivalence Code TSSOP14,.25
Moisture Sensitivity Level 1.0000
Output Low Current-Max (mA) 6.8000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -55.0000
Propagation Delay-Max@Nom-Sup (ns) 250.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
