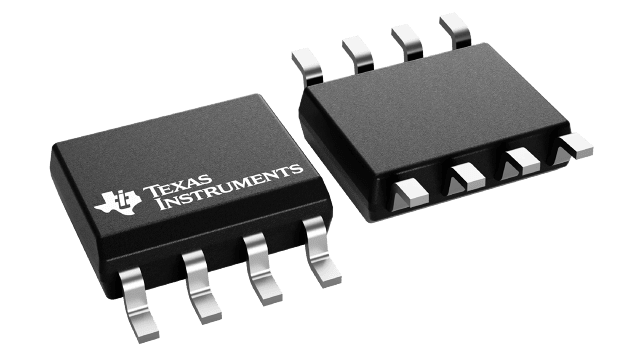

TPS54232DR

3.5-V to 28-V input, 2-A step-down converter with eco-mode 8-SOIC -40 to 150

Request price

Technical Data

Manufacturer texas instruments inc

MPN TPS54232DR

Width (mm) 3.9000

Length (mm) 4.9000

Control Mode CURRENT-MODE

JESD-30 Code R-PDSO-G8

Package Code SOP

Package Shape RECTANGULAR

Package Style ( Meter ) SMALL OUTLINE

Surface Mount YES

Terminal Form GULL WING

J-STD-609 Code e4

Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)

Control Technique PULSE WIDTH MODULATION

DLA Qualification Not Qualified

Number of Outputs 1.0000

Temperature Grade AUTOMOTIVE

Terminal Position DUAL

Number of Functions 1.0000

Number of Terminals 8.0000

Terminal Pitch (mm) 1.2700

Input Voltage-Max (V) 28.0000

Input Voltage-Min (V) 3.5000

Input Voltage-Nom (V) 12.0000

Package Body Material PLASTIC/EPOXY

Analog IC - Other Type SWITCHING REGULATOR

Output Current-Max (A) 2.0000

Output Voltage-Max (V) 25.0000

Output Voltage-Min (V) 0.8000

Seated Height-Max (mm) 1.7500

Switcher Configuration BUCK

Moisture Sensitivity Level 1.0000

Peak Reflow Temperature (Cel) 260.0000

Switching Frequency-Max (kHz) 1000.0000

Operating Temperature-Max (Cel) 150.0000

Operating Temperature-Min (Cel) -40.0000

Time@Peak Reflow Temperature-Max (s) 30.0000

Availability In stock
