Lead Time     12 weeks

Datasheet

    Download INA296A3IDDFR datasheet INA296A3IDDFR

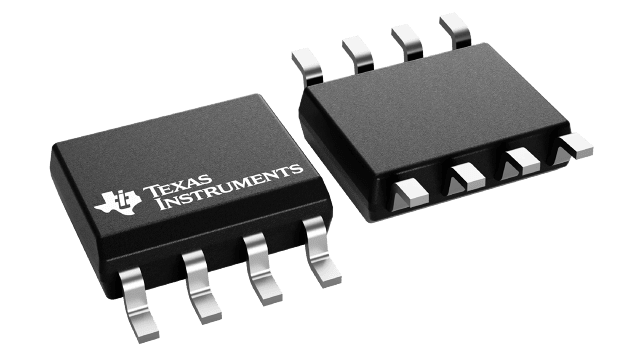

-5-V to 110-V, bidirectional, 1.1-MHz 8-V/µs ultraprecise current sense amplifier 8-SOT-23-THIN -40 to 125

Technical Data

Manufacturer texas instruments inc
MPN INA296A3IDDFR
Power NO
Low-Bias NO
Wideband NO
Low-Offset YES
Micropower NO
Width (mm) 1.6000
Length (mm) 2.9000
JESD-30 Code R-PDSO-G8
Package Code TSSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Surface Mount YES
Terminal Form GULL WING
Amplifier Type Current Sense
J-STD-609 Code e4
Packing Method TR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Amp Architecture VOLTAGE-FEEDBACK
Terminal Position DUAL
Programmable Power NO
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 0.6500
Slew Rate-Nom (V/us) 8.0000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 1.1000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 3.2000
Unity Gain BW-Nom (kHz) 1100.0000
Package Equivalence Code TSSOP8,.11
Moisture Sensitivity Level 1.0000
Common Mode Voltage-Max (V) 110.0000
Supply Voltage Limit-Max (V) 22.0000
Input Offset Voltage-Max (uV) 10.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 45.0000
Common-mode Reject Ratio-Min (dB) 150.0000
Common-mode Reject Ratio-Nom (dB) 166.0000
Average Bias Current-Max (IIB) (uA) 45.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Amplifiers, INA296A3IDDFR optimizes energy distribution in electronic devices. Its -5-V to 110-V, bidirectional, 1.1-MHz 8-V/µs ultraprecise current sense amplifier 8-SOT-23-THIN -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Amplifiers, INA296A3IDDFR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for INA296A3IDDFR in the documentation section.

-5-V to 110-V, bidirectional, 1.1-MHz 8-V/µs ultraprecise current sense amplifier 8-SOT-23-THIN -40 to 125
