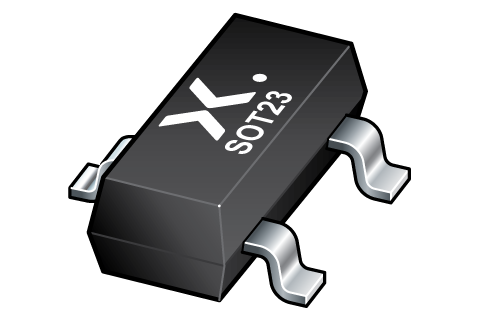

PMBT3906,215

Nexperia BV

PMBT3906,215

PMBT3906,215

PMBT3906,215

Availability
Unavailable
Availability
Design risk
Low
Design risk
Price trend
Stable
Price trend
Lead time
Increasing
Lead time
15 results found
7113K455
Available
Available
High
High
Stable
Stable
Stable
Stable
5051100692
Available
Available
Low
Low
Stable
Stable
Decreasing
Decreasing
DMN5L06VK-7
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
FF900R12IP4
Available
Available
High
High
Stable
Stable
Stable
Stable
WR12X330JTL
Unavailable
Unavailable
Low
Low
Stable
Stable
Stable
Stable
MAX4236EUT+T
Available
Available
High
High
Stable
Stable
Decreasing
Decreasing
115A-BDA0-R01
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
IXA60IF1200NA
Available
Available
High
High
Increasing
Increasing
Stable
Stable
SM8S28ATHE3/I
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
SN74LV595APWR
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
BLM15GA750SN1D
Constrained
Constrained
Low
Low
Increasing
Increasing
Stable
Stable
81036-500203-RB
Constrained
Constrained
Medium
Medium
Stable
Stable
Stable
Stable
LT3065EDD#TRPBF
Unavailable
Unavailable
High
High
Stable
Stable
Stable
Stable
LM2675MX-5.0/NO...
Constrained
Constrained
Low
Low
Stable
Stable
Stable
Stable
TLF35584QVVS2XU...
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Stable
Stable

Semiconductors

Transistors

Lead Time     10 weeks

PNP switching transistor

Technical Data

Manufacturer Nexperia BV
MPN PMBT3906,215
Application SWITCHING
JESD-30 Code R-PDSO-G3
Configuration SINGLE
JEDEC-95 Code TO-236AB
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e3
VCEsat-Max (V) 0.4000
Terminal Finish TIN
DLA Qualification Not Qualified
Terminal Position DUAL
Fall Time-Max (ns) 75.0000
Number of Elements 1.0000
Number of Terminals 3.0000
Package Body Material PLASTIC/EPOXY
Polarity/Channel Type PNP
Rise Time-Max (tr) (ns) 35.0000
DC Current Gain-Min (hFE) 30.0000
Power Dissipation-Max (W) 0.2500
Moisture Sensitivity Level 1.0000
Transistor Element Material SILICON
Turn-on Time-Max (ton) (ns) 70.0000
Peak Reflow Temperature (Cel) 260.0000
Turn-off Time-Max (toff) (ns) 75.0000
Collector Current-Max (IC) (A) 0.2000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -65.0000
Collector-emitter Voltage-Max (V) 40.0000
Collector-base Capacitance-Max (pF) 4.5000
Transition Frequency-Nom (fT) (MHz) 250.0000
Screening Level / Reference Standard IEC-60134
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
