Semiconductors

Transistors

Lead Time     14 weeks

Datasheet

    Download ZXTN2010ZTA datasheet ZXTN2010ZTA

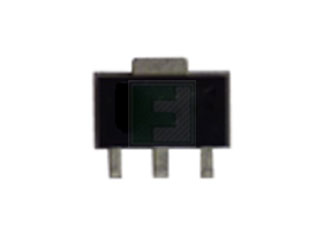

Trans GP BJT NPN 60V 5A 4-Pin(3+Tab) SOT-89 T/R

Technical Data

Manufacturer diodes inc
MPN ZXTN2010ZTA
Application SWITCHING
JESD-30 Code R-PSSO-F3
Configuration Single
Package Shape RECTANGULAR
Package Style SOT-89 (SC-62)
Surface Mount YES
Terminal Form FLAT
J-STD-609 Code e3
VCEsat-Max (V) 0.2300
Case Connection COLLECTOR
Terminal Finish MATTE TIN
DLA Qualification Not Qualified
Terminal Position SINGLE
Number of Elements 1.0000
Number of Terminals 3.0000
Package Body Material PLASTIC/EPOXY
Polarity/Channel Type NPN
DC Current Gain-Min (hFE) 20.0000
Power Dissipation-Max (W) 2.1000
Moisture Sensitivity Level 1.0000
Transistor Element Material SILICON
Peak Reflow Temperature (Cel) 260.0000
Collector Current-Max (IC) (A) 5.0000
Operating Temperature-Max (Cel) 150.0000
Operating Temperature-Min (Cel) -55.0000
Collector-emitter Voltage-Max (V) 60.0000
Collector-base Capacitance-Max (pF) 31.0000
Transition Frequency-Nom (fT) (MHz) 130.0000
Screening Level / Reference Standard MIL-STD-202
Time@Peak Reflow Temperature-Max (s) 30.0000
Width 2.6 mm
Length 4.6 mm
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Transistors, ZXTN2010ZTA optimizes energy distribution in electronic devices. Its Trans GP BJT NPN 60V 5A 4-Pin(3+Tab) SOT-89 T/R allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Transistors, ZXTN2010ZTA ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for ZXTN2010ZTA in the documentation section.

Trans GP BJT NPN 60V 5A 4-Pin(3+Tab) SOT-89 T/R
