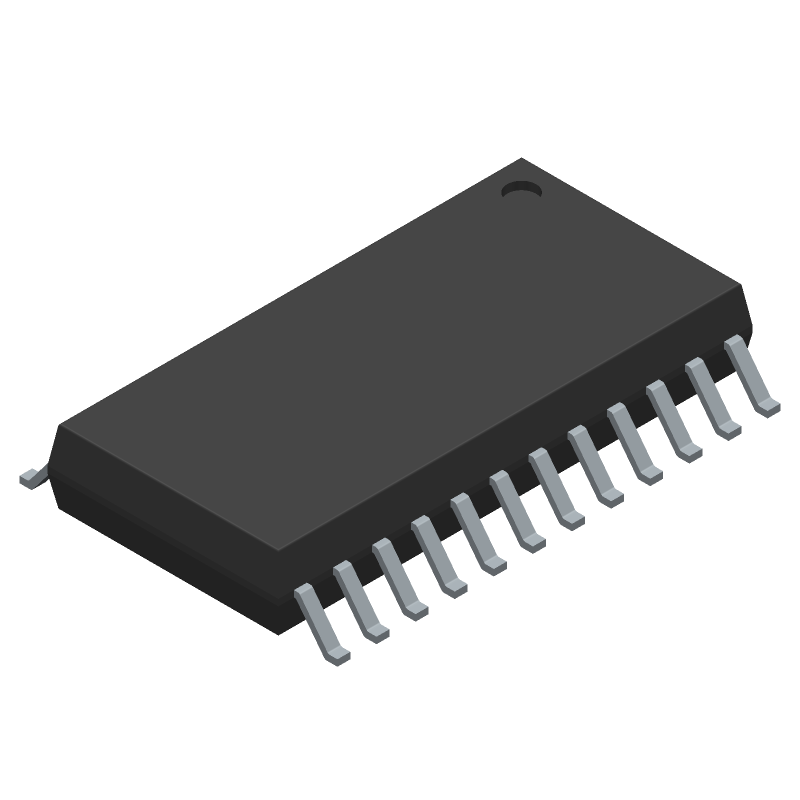

AD7856ARZ

5 V Single-Supply, 8-Channel, 14-Bit, 285 kSPS, Serial Sampling ADC

Request price

Technical Data

Manufacturer analog devices inc

MPN AD7856ARZ

Technology CMOS

Width (mm) 7.5000

Length (mm) 15.4000

JESD-30 Code R-PDSO-G24

Package Code SOP

Output Format SERIAL

Package Shape RECTANGULAR

Package Style ( Meter ) SMALL OUTLINE

Surface Mount YES

Terminal Form GULL WING

Converter Type ADC, SUCCESSIVE APPROXIMATION

J-STD-609 Code e3

Number of Bits 14.0000

Output Bit Code BINARY

Terminal Finish Matte Tin (Sn)

DLA Qualification Not Qualified

Sample Rate (MHz) 0.2850

Temperature Grade INDUSTRIAL

Terminal Position DUAL

Number of Functions 1.0000

Number of Terminals 24.0000

Terminal Pitch (mm) 1.2700

Package Body Material PLASTIC/EPOXY

Seated Height-Max (mm) 2.6500

Supply Voltage-Nom (V) 5.0000

Supply Current-Max (mA) 17.0000

Conversion Time-Max (us) 3.5000

Package Equivalence Code SOP24,.4

Moisture Sensitivity Level 1.0000

Analog Input Voltage-Max (V) 5.2500

Analog Input Voltage-Min (V) 0.0000

Linearity Error-Max (EL) (%) 0.0122

Number of Analog In Channels 8.0000

Peak Reflow Temperature (Cel) 260.0000

Sample-and-Hold/Track-and-Hold TRACK

Operating Temperature-Max (Cel) 105.0000

Operating Temperature-Min (Cel) -40.0000

Configuration MUX-S/H-ADC

Availability In stock
