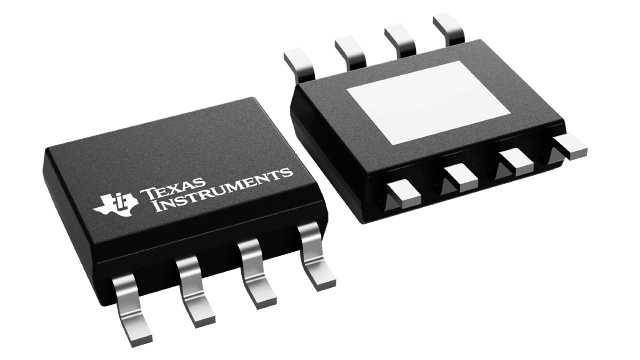

TPS5430DDAR

Texas Instruments Incorporated

TPS5430DDAR

TPS5430DDAR

TPS5430DDAR

Availability
Unavailable
Availability
Design risk
Low
Design risk
Price trend
Stable
Price trend
Lead time
Decreasing
Lead time
15 results found
AOZ1280CI
Available
Available
Low
Low
Increasing
Increasing
Stable
Stable
G104VN01V1
Available
Available
High
High
Stable
Stable
Stable
Stable
NUP2105LT1G
Constrained
Constrained
Low
Low
Stable
Stable
Decreasing
Decreasing
WR06X104JTL
Unavailable
Unavailable
Low
Low
Stable
Stable
Increasing
Increasing
LMZ10501SILR
Available
Available
Low
Low
Increasing
Increasing
Stable
Stable
PC357N3J000F
Available
Available
Low
Low
Increasing
Increasing
Stable
Stable
TLV9061IDBVR
Available
Available
Low
Low
Increasing
Increasing
Stable
Stable
TPD6E001RSER
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
TPS40210DGQR
Unavailable
Unavailable
Low
Low
Increasing
Increasing
Stable
Stable
LS1021AXE7KQB
Available
Available
High
High
Stable
Stable
Stable
Stable
LM285BYMX/NOPB
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
PEX8604-BA50BIG
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
AD5328ARUZ-REEL...
Constrained
Constrained
Low
Low
Decreasing
Decreasing
Increasing
Increasing
MC74LVX4245DTR2...
Unavailable
Unavailable
Low
Low
Stable
Stable
Decreasing
Decreasing
SIP32462DB-T2-G...
Available
Available
Medium
Medium
Decreasing
Decreasing
Increasing
Increasing

Semiconductors

Other Semiconductors

Lead Time     12 weeks
Data Sheet     Download TPS5430DDAR datasheet TPS5430DDAR

5.5V to 36V Input, 3A, 500kHz Step-Down Converter 8-SO PowerPAD -40 to 125

Technical Data

Manufacturer Texas Instruments Incorporated
MPN TPS5430DDAR
Width (mm) 3.9000
Length (mm) 4.8900
Control Mode VOLTAGE-MODE
JESD-30 Code R-PDSO-G8
Package Code HLSOP
Package Shape RECTANGULAR
Package Style ( Meter ) SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE
Surface Mount YES
Terminal Form GULL WING
J-STD-609 Code e4
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Control Technique PULSE WIDTH MODULATION
DLA Qualification Not Qualified
Number of Outputs 1.0000
Temperature Grade AUTOMOTIVE
Terminal Position DUAL
Number of Functions 1.0000
Number of Terminals 8.0000
Terminal Pitch (mm) 1.2700
Input Voltage-Max (V) 36.0000
Input Voltage-Min (V) 5.5000
Input Voltage-Nom (V) 12.0000
Package Body Material PLASTIC/EPOXY
Analog IC - Other Type SWITCHING REGULATOR
Output Current-Max (A) 3.0000
Output Voltage-Max (V) 31.0000
Output Voltage-Min (V) 1.2300
Seated Height-Max (mm) 1.6800
Switcher Configuration BUCK
Package Equivalence Code SOP8,.25
Moisture Sensitivity Level 1.0000
Peak Reflow Temperature (Cel) 260.0000
Switching Frequency-Max (kHz) 500.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock

Submit Request

CONTACT REASON

Connect With Us

HEADQUARTERS

Sourceability North America, LLC

9715 Burnet Rd, Ste 200 Austin, TX 78758-5215

FOR GENERAL INQUIRES

Email [email protected]

Phone +1-888-952-9225

Frequently Asked Questions

As part of the category Semiconductors and subcategory Other Semiconductors, TPS5430DDAR optimizes energy distribution in electronic devices. Its 5.5V to 36V Input, 3A, 500kHz Step-Down Converter 8-SO PowerPAD -40 to 125 allows minimizing losses and increasing the overall system efficiency.

As a component of the subcategory Other Semiconductors, TPS5430DDAR ensures stable output voltage even when the load changes. Its makes it a reliable element in multi-level power systems.

You can download the user manual and technical specifications for TPS5430DDAR in the documentation section.

5.5V to 36V Input, 3A, 500kHz Step-Down Converter 8-SO PowerPAD -40 to 125
