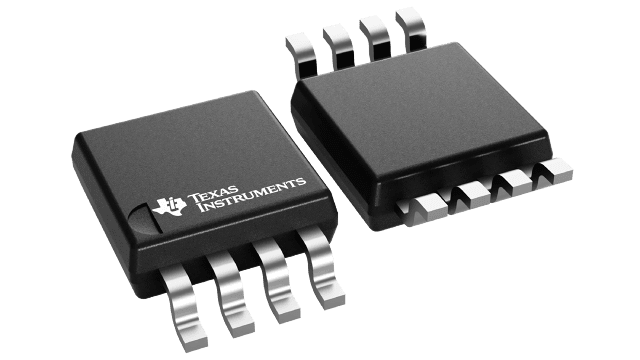

THS4561IRUNR

Texas Instruments Incorporated

THS4561IRUNR

THS4561IRUNR

THS4561IRUNR

Availability
Available
Availability
Design risk
Low
Design risk
Price trend
Decreasing
Price trend
Lead time
Stable
Lead time
15 results found
FR1D
Unavailable
Unavailable
High
High
Stable
Stable
Stable
Stable
1N5408
Unavailable
Unavailable
Low
Low
Stable
Stable
Increasing
Increasing
EN5329QI
Available
Available
High
High
Decreasing
Decreasing
Stable
Stable
SDC4/16GB
Available
Available
High
High
Stable
Stable
Stable
Stable
J00-0045NL
Available
Available
Low
Low
Decreasing
Decreasing
Increasing
Increasing
CR05-1501-FK
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Stable
Stable
5M160ZT100I5N
Available
Available
High
High
Stable
Stable
Stable
Stable
LT3045EDD#TRPBF
Available
Available
Medium
Medium
Increasing
Increasing
Increasing
Increasing
RC2512JK-0713RL
Unavailable
Unavailable
Low
Low
Decreasing
Decreasing
Decreasing
Decreasing
LTC4217CFE#TRPB...
Constrained
Constrained
Medium
Medium
Increasing
Increasing
Decreasing
Decreasing
AT45DB641E-SHN2...
Available
Available
High
High
Stable
Stable
Stable
Stable
88E6097-A2-TAH1...
Available
Available
High
High
Stable
Stable
Increasing
Increasing
XC95144XL-10TQG...
Constrained
Constrained
High
High
Stable
Stable
Stable
Stable
MT41K256M8DA-10...
Available
Available
High
High
Stable
Stable
Increasing
Increasing
MT53D1024M32D4D...
Available
Available
High
High
Stable
Stable
Stable
Stable

Semiconductors

Amplifiers

Lead Time     6 weeks
Data Sheet     Download THS4561IRUNR datasheet THS4561IRUNR

Low-power, 60-MHz, wide-supply-range fully differential amplifier 10-QFN -40 to 125

Technical Data

Manufacturer Texas Instruments Incorporated
MPN THS4561IRUNR
Power NO
Low-Bias NO
Wideband NO
Low-Offset YES
Micropower YES
Width (mm) 2.0000
Length (mm) 2.0000
JESD-30 Code R-PQCC-N10
Package Code HVQCCN
Package Shape SQUARE
Package Style ( Meter ) CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Surface Mount YES
Terminal Form NO LEAD
Amplifier Type Differential
J-STD-609 Code e4
Packing Method TR
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Amp Architecture VOLTAGE-FEEDBACK
Voltage Gain-Min 158489.3192
Temperature Grade AUTOMOTIVE
Terminal Position QUAD
Programmable Power YES
Number of Functions 1.0000
Number of Terminals 10.0000
Terminal Pitch (mm) 0.5000
Slew Rate-Nom (V/us) 230.0000
Package Body Material PLASTIC/EPOXY
Frequency Compensation YES
Seated Height-Max (mm) 0.8000
Supply Voltage-Nom (V) 5.0000
Supply Current-Max (mA) 0.9000
Unity Gain BW-Nom (kHz) 60000.0000
Package Equivalence Code LCC10,.08SQ,20
Moisture Sensitivity Level 2.0000
Supply Voltage Limit-Max (V) 13.5000
Input Offset Voltage-Max (uV) 250.0000
Peak Reflow Temperature (Cel) 260.0000
Operating Temperature-Max (Cel) 125.0000
Operating Temperature-Min (Cel) -40.0000
Bias Current-Max (IIB) @25C (uA) 0.6000
Common-mode Reject Ratio-Min (dB) 95.0000
Common-mode Reject Ratio-Nom (dB) 110.0000
Average Bias Current-Max (IIB) (uA) 0.6000
Input Offset Current-Max (IIO) (uA) 0.0200
Time@Peak Reflow Temperature-Max (s) 30.0000
Availability In stock
