MCF5206ECAB40
Availability
Design risk
Price trend
Lead time

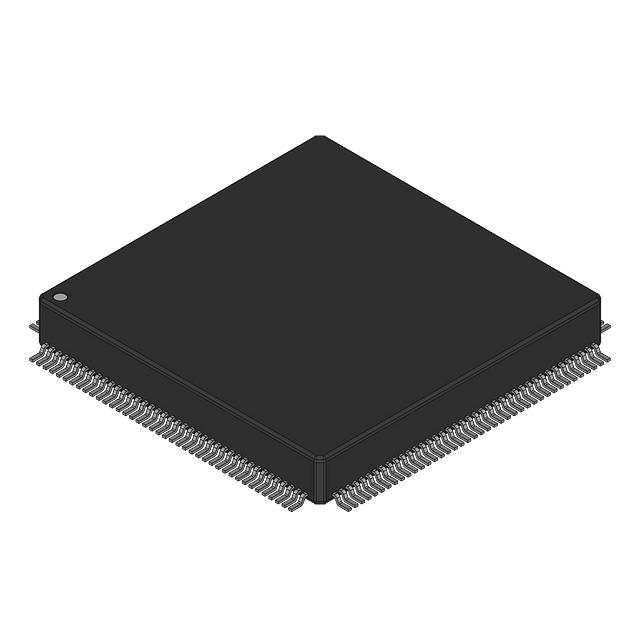

IC MPU MCF520X 40MHZ 160QFP
| Format | FIXED POINT |
| Bit Size | 32 |
| Technology | CMOS |
| Width (mm) | 28 |
| Length (mm) | 28 |
| Speed (MHz) | 40 |
| JESD-30 Code | S-PQFP-G160 |
| Package Code | QFP |
| Boundary Scan | YES |
| Package Shape | SQUARE |
| Package Style (Meter) | FLATPACK |
| Surface Mount | YES |
| Terminal Form | GULL WING |
| J-STD-609 Code | e3 |
| Low Power Mode | YES |
| Terminal Finish | MATTE TIN |
| Integrated Cache | YES |
| Address Bus Width | 28 |
| DLA Qualification | Not Qualified |
| Temperature Grade | INDUSTRIAL |
| Terminal Position | QUAD |
| Number of Terminals | 160 |
| Terminal Pitch (mm) | 0.65 |
| Package Body Material | PLASTIC/EPOXY |
| Seated Height-Max (mm) | 3.85 |
| Supply Voltage-Max (V) | 3.6 |
| Supply Voltage-Min (V) | 3 |
| Supply Voltage-Nom (V) | 3.3 |
| External Data Bus Width | 32 |
| Package Equivalence Code | QFP160,1.2SQ |
| Clock Frequency-Max (MHz) | 40 |
| Moisture Sensitivity Level | 3 |
| uPs/uCs/Peripheral ICs Type | MICROPROCESSOR, RISC |
| Peak Reflow Temperature (Cel) | 245 |
| Operating Temperature-Max (Cel) | 85 |
| Operating Temperature-Min (Cel) | -40 |
| Time@Peak Reflow Temperature-Max (s) | 30 |
